BendixKing AeroFlight KI 300
Versatile Flight Instrument with Built-in Backup Battery

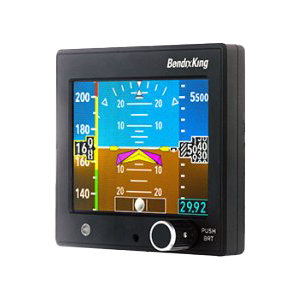

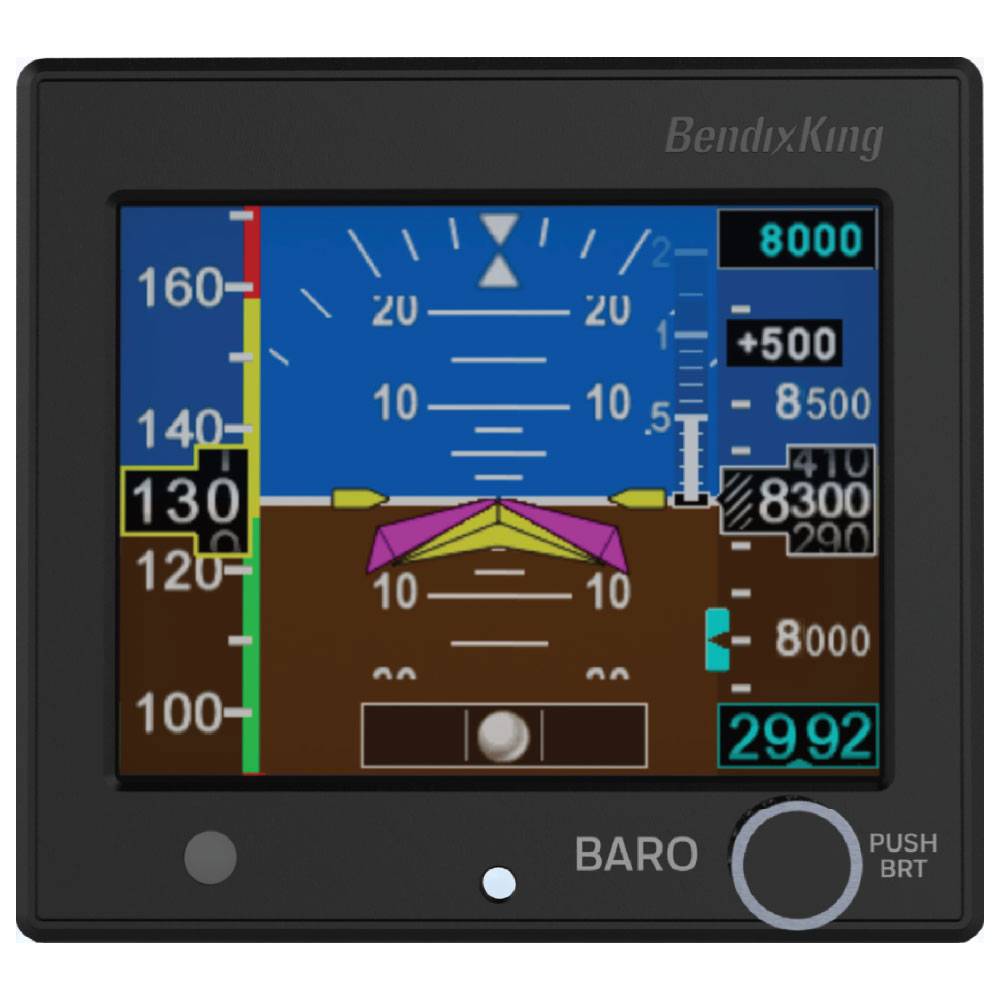

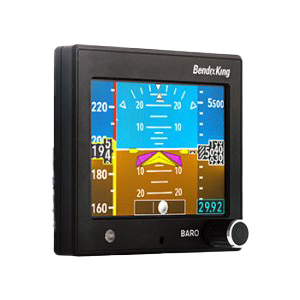

The KI 300 Electronic Attitude Indicator is a panel mounted attitude, airspeed, altitude, vertical speed and slip instrument. The instrument is self-contained and directly incorporates all of the sensors required to measure and display the listed flight parameters. All information is displayed on a color 3.5” diagonal LCD display in traditional aerospace symbology. The unit also contains a rechargeable battery capable of providing continued operation in the event of aircraft electrical failure.
Installation Request
Need Consult? Just Send the Form
Contact Us
Need Consult? Just Send the Form
AFFORDABLE UPGRADE
AeroFlight's KI 300 and KA 310 replaces the KI 255, KI 256 and the KG 258 with no changes to your instrument panel. KAP 100, 150, 200 and KFC 150, 200, 225 autopilots are natively supported using the AeroFlight KA 310 autopilot interface. The autopilot can be aligned and the air data computer calibrated, both with AeroFlight in the panel, simplifying installation and maintenance. This upgrade lets you save the typical $4000 to overhaul mechanical gyros every 800 hours, and gives all of the information in a primary flight display at a much lower cost.
RELIABILITY AND SAFETY
With no mechanical moving parts, AeroFlight has a MTBF (mean time between failures) of 10,000 hours, which means it will likely never fail for the life of your airplane. It is certified as sole source replacement attitude source for an autopilot, and can also serve as a perfect backup indicator.

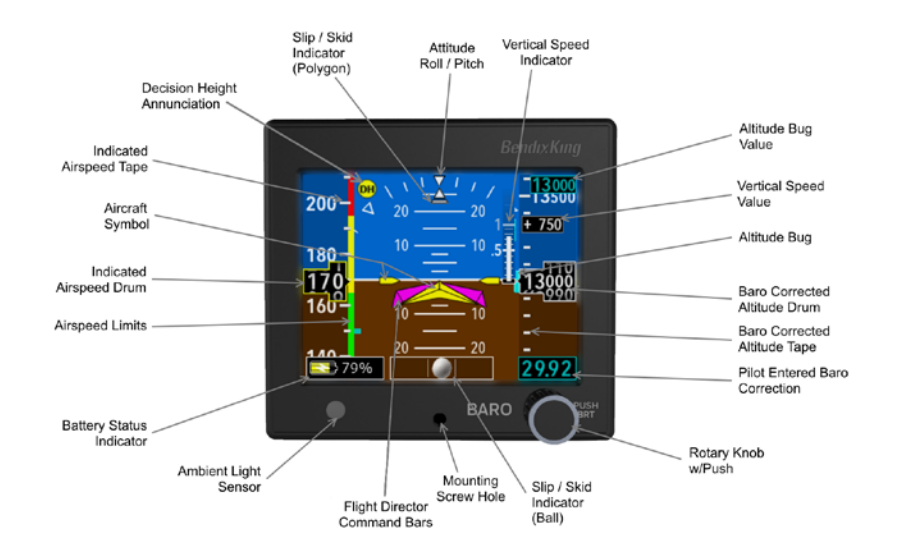

KI 300 Functions:
- Display of Indicated Airspeed (Knots or Mph)
- Display of Barometric Altitude (Feet)
- Display of Roll & Pitch (Fixed Pointer Format, Degrees)
- Display of Slip Indication (Degrees)
- Display of Vertical Speed Indication (feet per minute)
- Pilot Entered Baro Correction (mb or inHg – Configurable Default Value)
- Automatic and Manual Backlight Control (%)
- Display of Battery Charge Status (% Remaining)
- Display of V-Speed Limitations (Colored Bands)
- Altitude Bug (Pilot Adjustable) (For reference only, not and altitude pre-select function)
- Display of Flight Director Command Bars (when the KA 310 is connected to an autopilot with flight director functionality)
- Display of Decision Height Alert (when the KA 310 is connected to a radar altimeter)
