Audio Panel Wiring Harness

Built to your aircraft configuration and tested before it ships, with a wiring diagram and labelled wires.

Wiring diagram and labelled wires
Built and tested by AIR TEAM
Ready in up to 30 days

1What you get

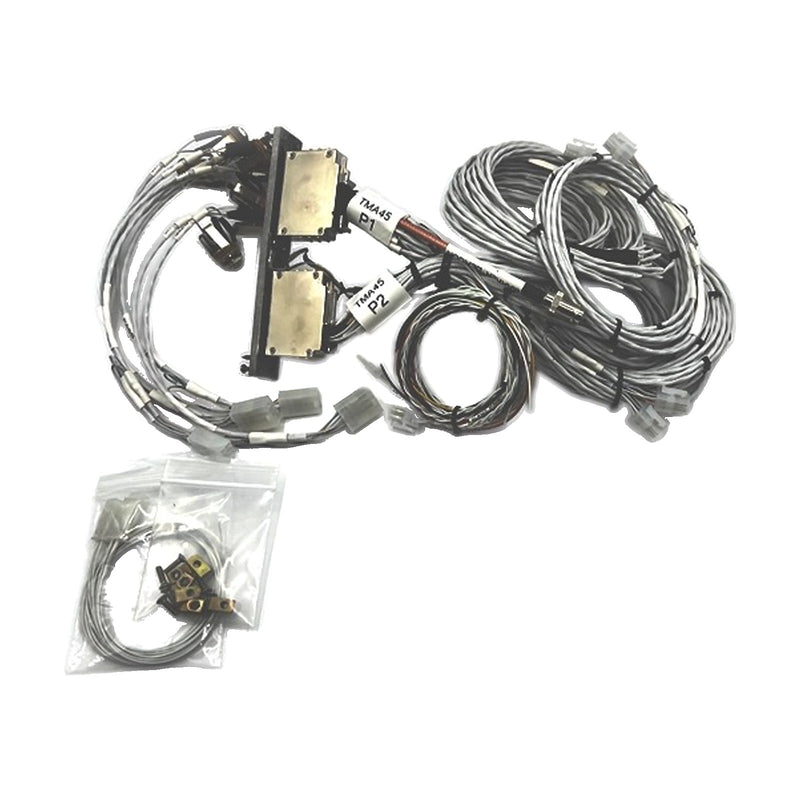

Audio panel wiring harness with labelled connectors and headset jack leads

Wiring harness for an audio panel, built to your aircraft configuration. Choose the number of seats.

Headset jacks for every seat, PTT, multi-position audio routing
COM, NAV and transponder audio, alerts, music input and marker beacon

Lead time: up to 30 days. Express production in 5–10 business days is available as an option in the order form.

Price excludes the connector kit: send your own, order one from us, or order the harness together with your radio.

Seats

2Your aircraft and equipment

Aircraft category

Aircraft type

Equipment make, model and P/N

Aircraft bus voltage

Connector kit

Aircraft registration (if known)

Lengths, connected equipment, panel layout

Express production: ready in 5–10 business days Standard production takes up to 30 days.

€713.90

Wire harnesses — frequently asked questions

Do you include the connector kit?

No. The harness price covers the wiring only. You can send your own connectors, order them from us, or order the harness together with the radio (connectors are then included).

What information do you need to build a harness?

Aircraft category and type, the unit make, model and part number, bus voltage (14 V or 28 V), your connector kit choice, cable lengths and the equipment it connects to (intercom, GPS source, antenna positions). You enter it in the order form; a sketch of the panel can follow by e-mail.

How long does production take?

Up to 30 days from your order. If you need it sooner, tick express production in the order form and we build it in 5–10 business days. We confirm the date by e-mail after reviewing your configuration.

When is the final price confirmed?

The price on the page covers a standard harness for that unit. If your configuration needs more, for example extra connected equipment, we send you a quote before we start and you can cancel free of charge.
